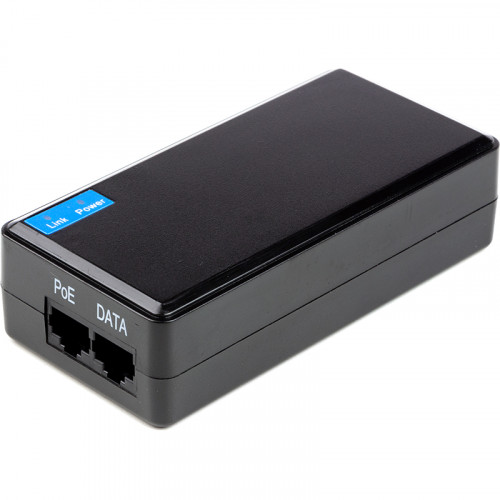

POE-004 инжектор

Ключові характеристики -Сумісний з IEEE 802.3 / 802.3u 10 / 100Base-T • Provides 48Vdc via pairs 4,5 (+) & 7,8 (-) of RJ-45 cable and for power supply safety -Дліна сигналу до 100 метрів -Виробляються до15.4W of Power over Ethernet

Technical Specifications:
• AC VOLTAGE: 90Vac TO 264Vac INPUT • FREQUENCY: 47Hz TO 63Hz • AC CURRENT: 0.6A MAX. • INRUSH CURRENT: 40A MAX. AT 115Vac AND FULL LOAD, COLD START, 25 ° C. • OUTPUT VOLTAGE: + 48Vdc • OUTPUT TOLERANCE: 45.6V ~ 50.4V • RIPPLE & NOISE: 480mVp-p • LOAD: MIN 0A MAX0.4A • RISE TIME: 50mS MAX. • HOLD-UP TIME: MINIMUM 10mS AT 80% MAX LOAD, 115Vac INPUT • Efficiency: THE SWITCHER SHOULD PROVIDE DC CONVERSION EFFICIENCY MINIMUM 80% • OVERSHOOT: OVERSHOOT SHOULD NOT EXCEED 10% OVER NOMINAL VOLTAGE • Operating Temperature: 0 ° C ~ 40 ° C • Operating Humidity: 20% ~ 90% (Non-Condensing)
